TL35S Series
Lifting Columns
The TL35S series columns are a rectangular profile inline design that looks slim yet ensures a high degree of stability. Our TL35S is a three-stage column that travels steadily with a long stroke and low noise level. The TL35S is ideally suited for ergonomic monitor stands or desk applications as it comes without a motor housing. It is the perfect choice for design-oriented lifting furniture that requires a clean appearance while simultaneously optimizing space.
General Features
Max. load: 700N (push)
Self-locking force: 700N
Max. dynamic bending moment: 150Nm
Max. static bending moment: 300Nm
Max. speed at max. load: 30mm/s
Max. speed at no load: 42mm/s
Retracted length: Standard (compatible with foot): 590 / 560(M) / 520(S)mm
Extended (compatible with shoe): 610 / 580(M) / 540(S)mmOuter profile: 97*67mm rectangular
Stages: 3-stage
Stroke: 650 / 660 (M, S) mm
Output signals: Hall sensors
Voltage: 24V DC
Color: Black, white, grey, or special grey
Product weight: 8Kg /column
Inline column

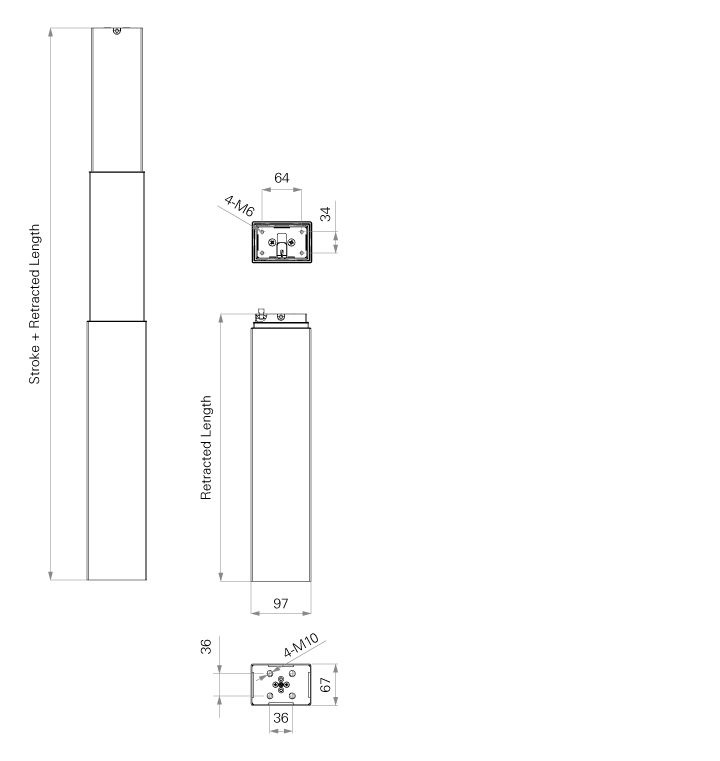

Standard Dimension (mm)
