TL5
Series

TiMOTION’s TL5 series columns are designed with an extruded steel square appearance for use in ergonomic furniture applications. Our economical TL5 provides stable vertical lifting. This makes the engineering design process easier and safer by replacing older style lifting mechanisms that use many moving stages and have pinch points. The 3-stage telescopic design enables a greatly reduced retracted height and provides an increased stroke length while ensuring a high degree of stability.

General Features

• Max. load: 800N (push)

• Max. speed at max. load: 20mm/s

• Max. speed at no load: 36mm/s

• Retracted length: 560mm

• Dimension of outer tube: 120*70mm rectangular

• Stages: 3-stage

• Stroke: 675mm

• Output signals: Hall sensors

• Voltage: 24V DC, 24V PTC

• Current at rated load: 5A

• Color: Black, white, grey, or special grey

• Inline column

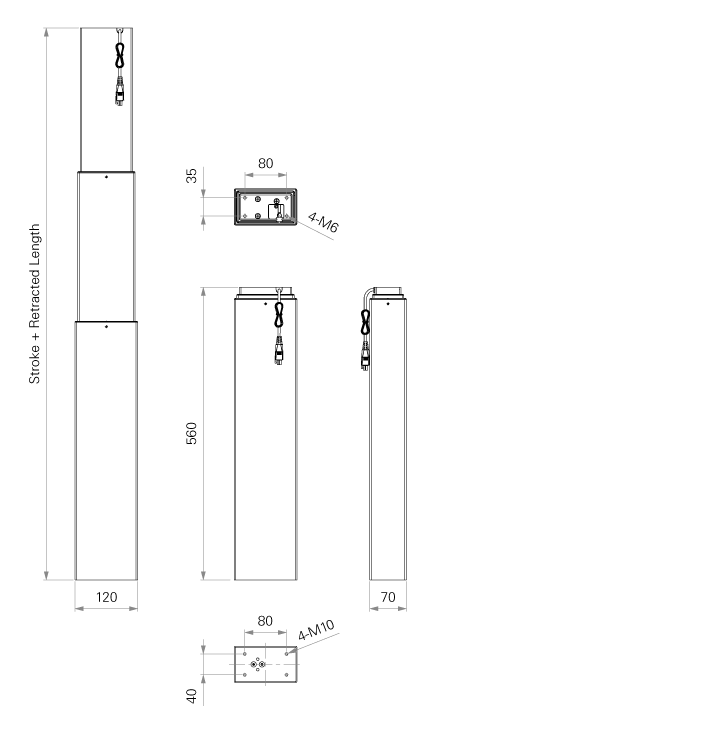

Standard Dimension (mm)
