TL37S
Series

Lifting Columns

Two-Stage Slim Inline Lifting Column | TL37S Series- TiMOTION

TiMOTION’s TL37S is a two-stage, inline lifting column with a rectangular-profile featuring a slim appearance all while maintaining a high degree of stability. Without any protruding motor housing, it is ideally suited for ergonomic monitor stands, desk applications, or design-oriented motion furniture that require a clean, elegant appearance.


General Features

  • Max. load: 700N (push)

  • Max. speed at max. load: 35mm/s

  • Max. speed at no load: 44mm/s

  • Retracted length: Standard (compatible with foot): 645mm
    Extended (compatible with shoe): 665mm

  • Dimension of outer tube: 90*60mm rectangular

  • Stages: 2-stage

  • Stroke: 430mm

  • Output signals: Hall sensors

  • Voltage: 24V DC

  • Color: Black, white, grey, or special grey

  • Inline column

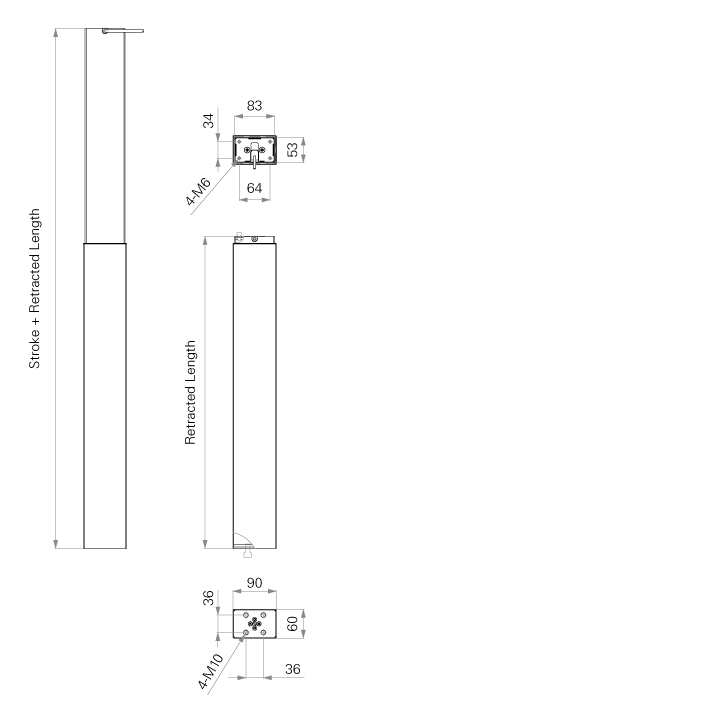

Standard Dimension (mm)
