TL6
Series

Lifting Columns

Inline Columns For Adjustable Furniture | TL6 - TiMOTION

The TL6 has a three stage telescopic outer tube that is designed for a narrow-top, wide-bottom round appearance, with an inline actuator (TA20) embedded. Without a motor housing design, it is suitable for ergonomic furniture applications. It is the perfect choice for design-oriented lifting furniture in need of a neat structure and space optimization.


General Features

  • Max. load: 700N (push)

  • Max. speed at max. load: 35mm/s

  • Max. speed at no load: 46mm/s

  • Retracted length: Standard (compatible with foot): 590 / 560(M) / 520(S)mm
    Extended (compatible with shoe): 610 / 580(M) /540(S)mm

  • Dimension of outer tube: Ø70mm round

  • Stages: 3-stage

  • Stroke: 650 / 660 (M, S)mm

  • Output signals: Hall sensors

  • Voltage: 24V DC

  • Operational temperature range: +5°C~+45°C

  • Inline column

  • The TL6 can only be used in pairs; single column usage is not recommended

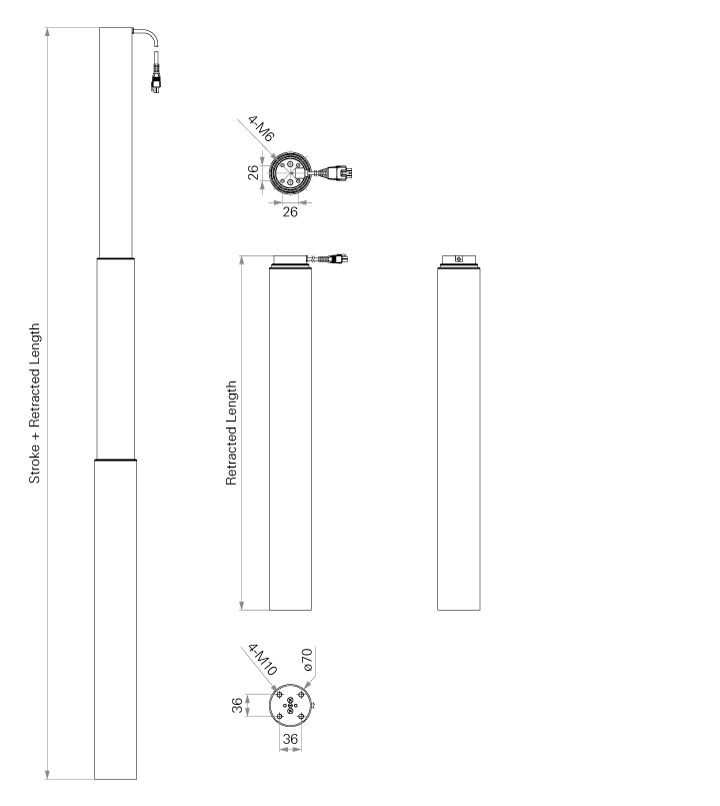

Standard Dimension (mm)





Inline Lifting Column Series
