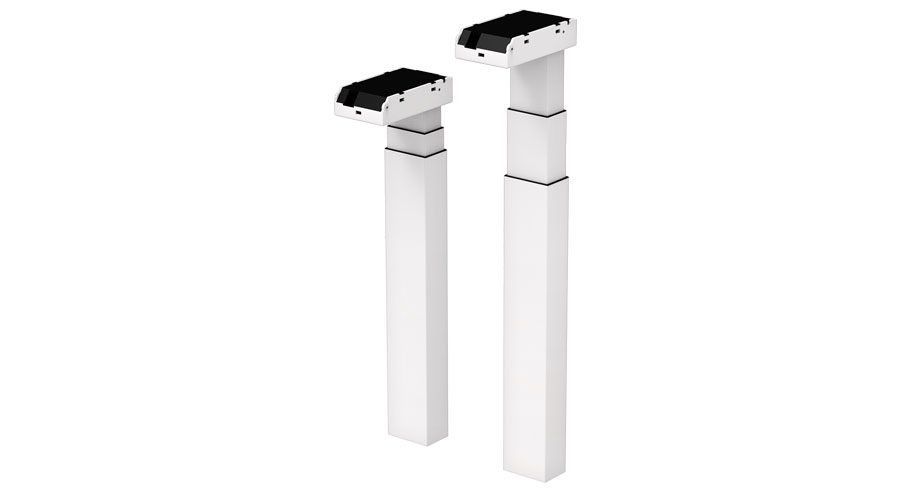

TL31K Series
Lifting Columns
TiMOTION's TL31K series is a high-value, cost-effective lifting column designed explicitly for ergonomic desks, work tables, and other height-adjustable systems. Multiple TL series lifting columns can be easily connected to compatible TC series control boxes, supporting synchronous movement with a press of a button on the supported TH / TDH series controls. All Ergo Motion TC series control boxes have a standby power option of less than 0.1W to reduce power consumption. Our wide range of columns and controls offer modular solutions to satisfy customer's project requirements for a variety of work environments, providing smooth and quiet operation of any worksurface.
The TL31K has a rectangular, three-stage telescopic profile, designed with a narrow-top, and wide-bottom.
General Features
Max. load: 600N (push)
Self-locking force: 600N
Max. speed at max. load: 24mm/s
Max. speed at no load: 38mm/s
Retracted length: Standard (compatible with foot): 590 / 560(M) / 520(S)mm
Extended (compatible with shoe): 610 / 580(M) / 540(S)mmOuter profile: 90*60mm rectangular
Stages: 3-stage
Stroke: Standard: 650mm;
M/S: 660mmOutput signals: Hall sensors
Voltage: 24V DC
Color: Black, white, grey, or special colors
Product weight: 7.9Kg /column
With motor house
Standard Dimension (mm)
.png)
