    TiMOTION Lifting Columns TL20S Series

    TL20S
    Series

    Lifting Columns

    3-Stage Inline Lifting Columns For Furniture | TL20S - TiMOTION
  • 3-stage 700N
  • DC ergo
  • 700N Furniture
  • Furniture ergo
  • DC Lifting columns
  • 3-stage Lifting columns
  • 700N Lifting columns
  • 3-stage DC
  • 700N DC
  • DC Furniture

    • Ergo Motion

    The TL20S has a three-stage telescopic outer tube design that has a narrow top and wide bottom square appearance, with an embedded inline actuator (TA20). The TL20S is ideally suited for ergonomic furniture applications as it comes without a motor housing. It is the perfect choice for design-oriented lifting furniture that needs a clean appearance while simultaneously optimizing space.


    General Features

    • Max. load: 700N (push)

    • Self-locking force: 900N

    • Max. speed at max. load: 35mm/s

    • Max. speed at no load: 46mm/s

    • Retracted length: Standard (compatible with foot): 590 / 560(M) / 520(S)mm
      Extended (compatible with shoe): 610 / 580(M) / 540(S)mm

    • Dimension of outer tube: 70*70mm square

    • Stages: 3-stage

    • Stroke: 650 / 660 (M, S) mm

    • Output signals: Hall sensors

    • Voltage: 24V DC

    • Inline column

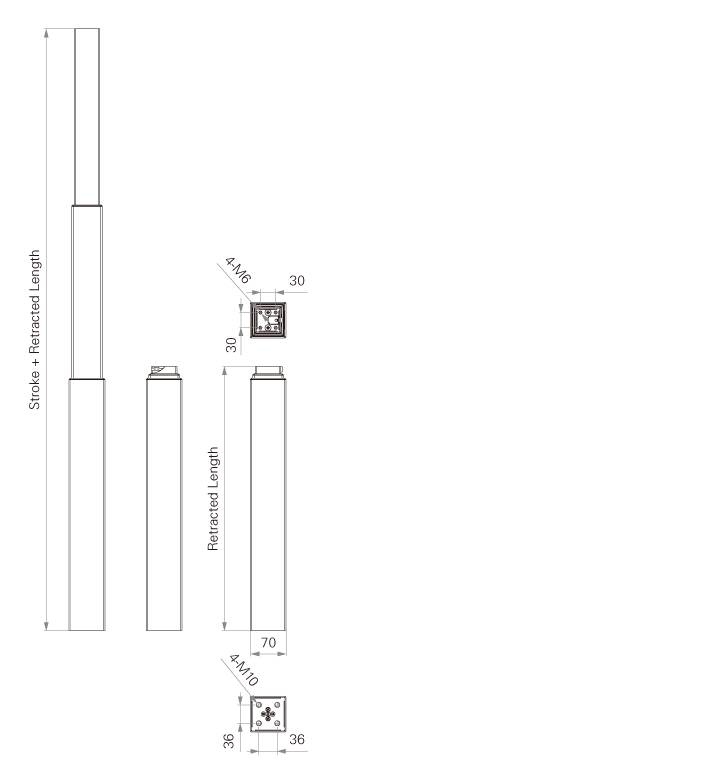

    Standard Dimension (mm)
