TL30K
Series

Lifting Columns

High-value Lifting Column For Ergonomic Desks | TL30K - TiMOTION

TiMOTION’s TL30K series is a high-value, cost-effective lifting column designed explicitly for ergonomic desks, work tables, and other height-adjustable systems.   Multiple TL series lifting columns can be easily connected to compatible TC series control boxes, supporting synchronous movement with a press of a button on the supported TH / TDH series controls. All Ergo Motion TC series control boxes have a standby power option of less than 0.1W to reduce power consumption. Our wide range of columns and controls offer modular solutions to satisfy customers’   project requirements for a variety of work environments, providing smooth and quiet operation of any worksurface.

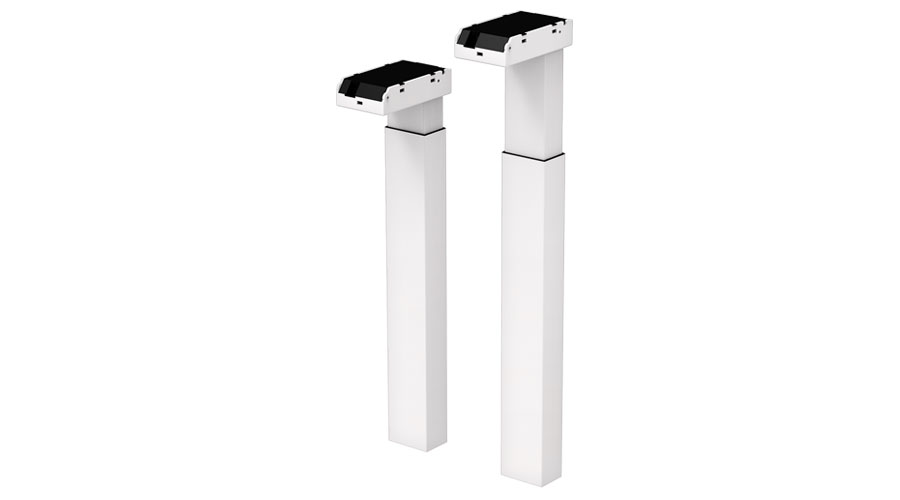

The TL30K has a rectangular, two-stage telescopic profile, designed with a narrow-top, and wide-bottom.


General Features

  • Max. load: 600N (push)

  • Max. speed at max. load: 31mm/s

  • Max. speed at no load: 38mm/s

  • Retracted length: Standard (compatible with foot): 645mm
    Extended (compatible with shoe): 665mm

  • Dimension of outer tube: 90*60mm rectangular

  • Stages: 2-stage

  • Stroke: 500mm

  • Output signals: Hall sensors

  • Voltage: 24V DC

  • Color: Black, white, grey, or special colors

  • With motor house

Standard Dimension (mm)
