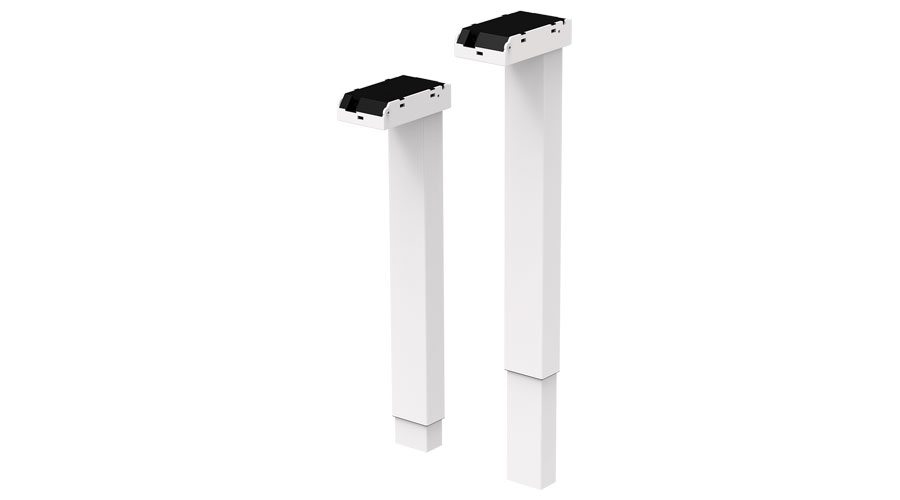

TL32SR
Series

TiMOTION’s TL32SR series lifting columns are specifically designed for use in ergonomic desks and work tables. Using multiple TL series lifting columns with compatible TC series control boxes and TH/TDH series controls, work surfaces can be controlled quietly and smoothly with synchronous movement. All Ergo Motion TC series control boxes have a less than 0.1W standby power option that reduces power consumption. Our wide range of columns offers customers the solutions they require to satisfy their project requirements. The TL32SR has a two stage telescopic outer tube that is designed for a wide-top, narrowbottom rectangular appearance.

General Features

• Max. load: 700N (push)

• Max. speed at max. load: 30mm/s

• Max. speed at no load: 38mm/s

• Retracted length: 645mm

• Dimension of outer tube: 83*53mm rectangular

• Stages: 2-stage, upside down

• Stroke: 500mm

• Output signals: Hall sensors

• Voltage: 24V DC

• With motor house

Standard Dimension (mm)
