Lifting Columns

The TL4 has a three-part telescopic outer tube that extends and retracts

TiMOTION’s TL4 series lifting columns are specifically designed for use in ergonomic desks and work tables. Using multiple TL series lifting columns with compatible TC series Control Boxes and TH/TDH series controls, work surfaces can be controlled quietly and smoothly with synchronous movement. All Ergo Motion TC series control boxes have a less than 0.1W standby power option that reduces power consumption. Our wide range of columns offers customers the solutions they require to satisfy their working environment project requirements. The TL4 has a three-stage telescopic outer tube that is designed for a narrow-top, wide-bottom square appearance.

General Features

  • Max. load: 800N(push)

  • Max. speed at max. load: 33mm/s

  • Max. speed at no load: 58mm/s

  • Retracted length: With foot: 590 / 560 (M) / 520 (S) mm, Excluding shoes: 610 / 580 (M) / 540 (S) mm

  • Dimension of outer tube: 3-stage, 70*70mm square

  • Stroke: 650 / 660 (M, S) mm

  • Color: Black, white, grey, or special grey

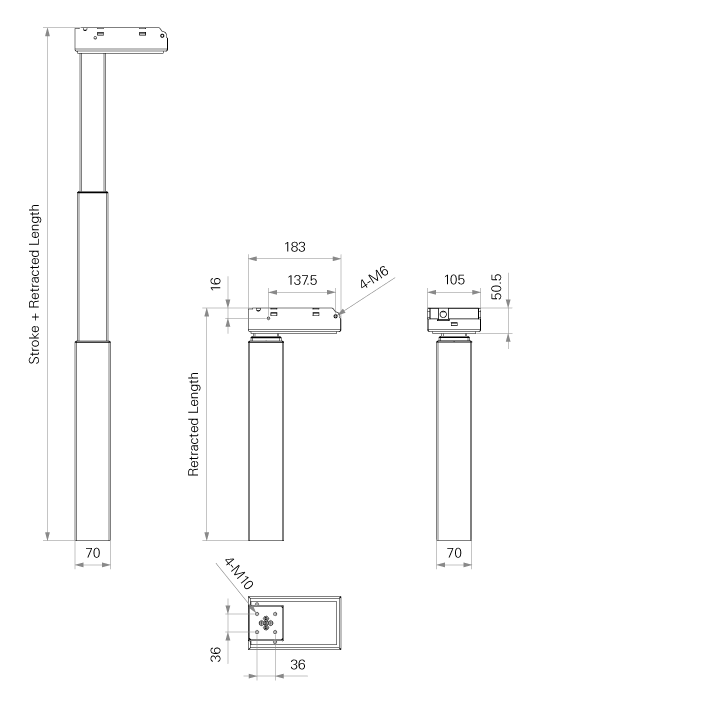

Standard Dimension (mm)
