TL25
Series

TL25 is a new concept of lifting mechanism. It is designed to be embedded in the panels or walls and lift up/down the table top. With this solution, there are no visible heavy steel columns or feet that normally come with the height adjustable desk. TL25 is an ideal solution for designers who would like to achieve both aesthetic and ergonomic feature for their office desks.

General Features

• Max. load: 1,500N (push)

• Max. dynamic bending moment: 130.5Nm

• Max. speed at max. load: 15mm/s

• Max. speed at no load: 108mm/s

• Retracted length: Stroke+360mm

• Dimension of outer tube: 50*100mm rectangular

• Stroke: 100~500mm

• Output signals: Hall sensors

• Voltage: 24V DC

• Color: Black, white, grey, or special colors

• Embedded in the panels or walls

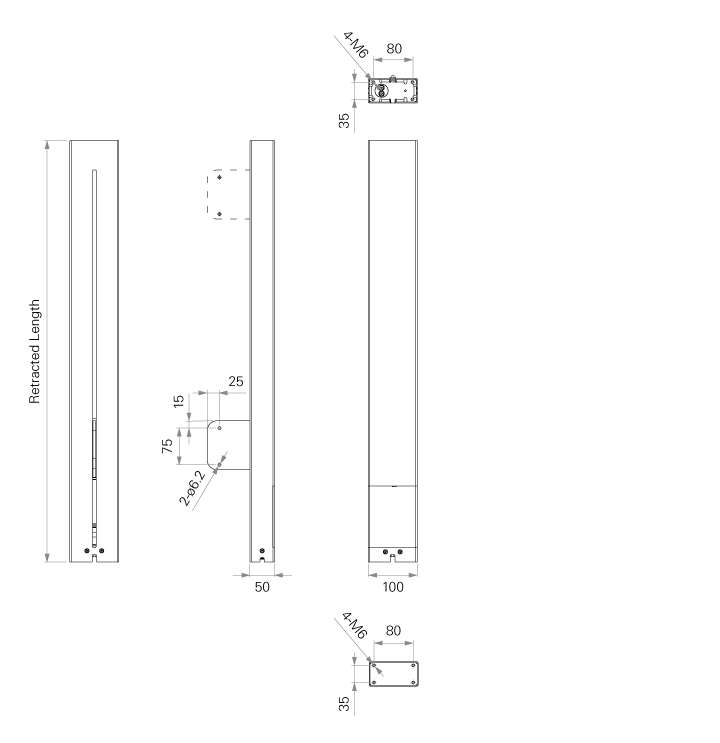

Standard Dimension (mm)
