TL10 Series
Lifting Columns
TiMOTION’s TL10 series lifting columns are specifically designed for use in ergonomic desks and work tables. Using multiple TL series lifting columns with compatible TC series Control Boxes and TH/TDH series controls, work surfaces can be controlled quietly and smoothly with synchronous movement. All Ergo Motion TC series control boxes have a less than 0.1W standby power option that reduces power consumption. Our wide range of columns offers customers the solutions they require to satisfy their working environment project requirements. The TL10 has a three-stage telescopic outer tube that is designed for a narrow-top, wide-bottom rectangular appearance.
General Features
Max. load: 800N (push)
Max. speed at max. load: 33mm/s
Max. speed at no load: 58mm/s
Retracted length: Standard (compatible with foot): 590 / 560(M) / 520(S)mm
Extended (compatible with shoe): 610 / 580(M) / 540(S)mmOuter profile: 80*60mm rectangular
Stages: 3-stage
Stroke: 650 / 660 (M, S) mm
Output signals: Hall sensors
Voltage: 24V DC
Color: Black, white, grey, or special colors
With motor house

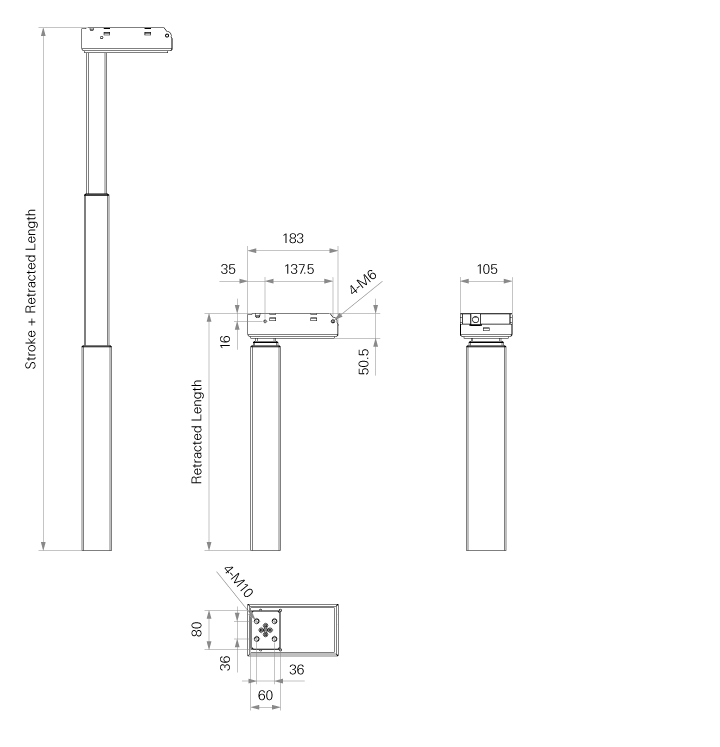

Standard Dimension (mm)
