TL35S
Serie
Hubsäulen

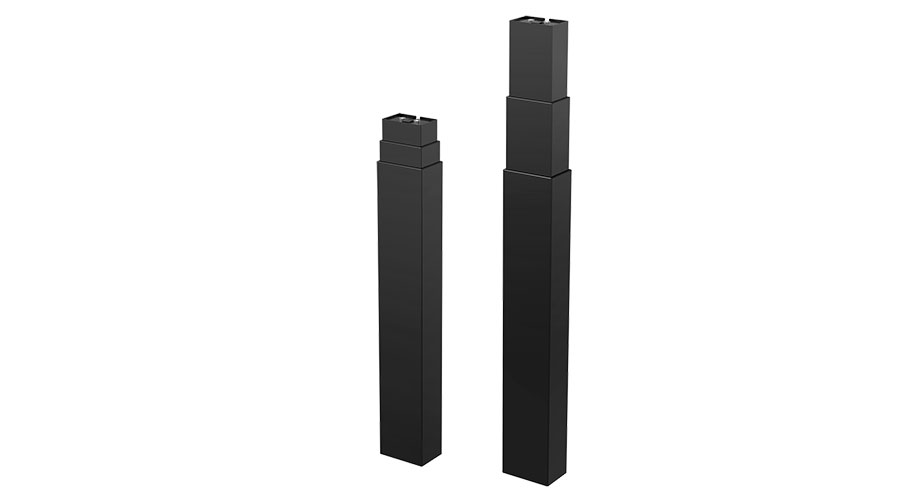

The TL35S series columns are a rectangular profile inline design that looks slim yet ensures a high degree of stability. Our TL35S is a three-stage column that travels steadily with a long stroke and low noise level. The TL35S is ideally suited for ergonomic monitor stands or desk applications as it comes without a motor housing. It is the perfect choice for design-oriented lifting furniture that requires a clean appearance while simultaneously optimizing space.
Allgemeine Funktionen
Höchstlast: 700 N (Drücken)
Self-locking force: 700N
Maximales dynamisches Biegemoment: 150Nm
Maximales statisches Biegemoment: 300Nm
Maximale Geschwindigkeit bei Volllast: 35mm/s
Maximale Geschwindigkeit ohne Last: 46mm/s
Minimale eingefahrene Länge: Standard: 590 / 560 (M) / 520 (S) mm; mit Kufen: 610 / 580 (M) / 540 (S) mm
Abmessungen des Aussenrohrs: 97*67mm rechteckig
Stufen: 3-stufig
Hub: 650 / 660 (M, S) mm
Signalausgaben: Hallsensoren
Spannung: 24V DC
Farbe: Schwarz, weiß, grau, besondere Farbe
Spalte in einer Reihe
Standard-Abmessungen (mm)
