TL33K
Serie
Hubsäulen

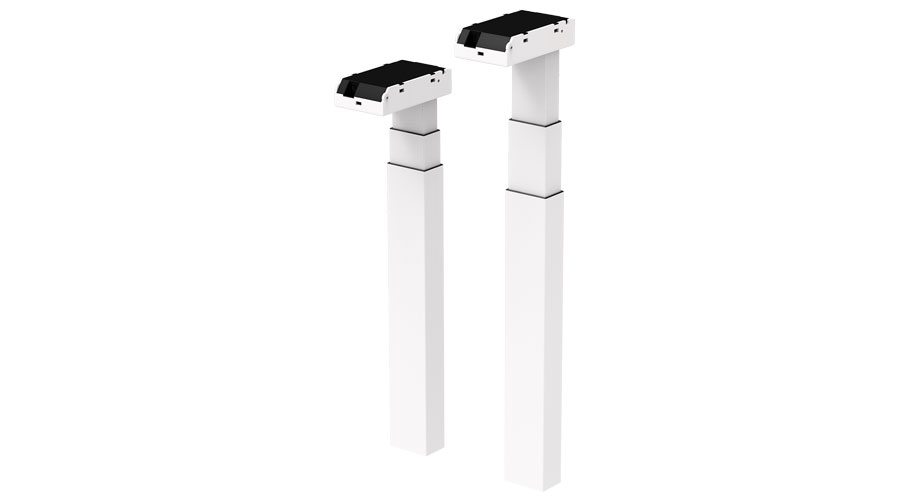

TiMOTION’s TL33K series is a high-value, cost-effective lifting column designed explicitly for ergonomic desks, work tables, and other height-adjustable systems. Work surfaces adapt quietly and smoothly with synchronous movement. The TL33K uses multiple TL series lifting columns with compatible TC series Control Boxes and TH/TDH series controls. All Ergo Motion TC series control boxes have a less than 0.1W standby power option that reduces power consumption. Our wide range of columns offers solutions to satisfy customers’ working environment project requirements. The TL33K has a three-stage telescopic profile designed for a narrow-top, wide-bottom rectangular appearance.
Allgemeine Funktionen
Höchstlast: 600N (push)
Maximale Geschwindigkeit bei Volllast: 32mm/s
Maximale Geschwindigkeit ohne Last: 45mm/s
Minimale eingefahrene Länge: Standard: 590 / 560 (M) / 520 (S)mm; for shoes: 610 / 580 (M) /540 (S)mm
Abmessungen des Aussenrohrs: 83*53mm rectangular
Stufen: 3-stage
Hub: Standard: 650mm;
M/S: 660mmSignalausgaben: Hall sensors
Spannung: 24V DC
Farbe: Black, white, grey, or special grey
Betriebstemperaturbereich: +5°C~+45°C
With motor house
Standard-Abmessungen (mm)
