Serie
TL35S

Colonne

Rectangular Inline Desk Lifting Columns | TL35S- TiMOTION

The TL35S series lifting columns are a rectangular profile inline design that looks slim yet ensures a high degree of stability. Our TL35S is a three-stage column that travels steadily with a long stroke and low noise level. The TL35S is ideally suited for ergonomic monitor stands or desk applications as it comes without a motor housing. It is the perfect choice for design-oriented lifting furniture that requires a clean appearance while simultaneously optimizing space.


Caratteristiche Generali

  • Carico massimo: 700N (push)

  • Velocità a massimo carico: 35mm/s

  • Velocità massima a vuoto: 46mm/s

  • Lunghezza minima: Standard: 590 / 560 (M) / 520 (S) mm; for shoes: 610 / 580 (M) / 540 (S) mm

  • Dimensioni del tubo esterno: 97*67mm rectangular

  • Stadi: 3-stage

  • Corsa: 650 / 660 (M, S) mm

  • Segnale in uscita: Hall sensors

  • Tensione motore: 24V DC

  • Colore: Black, white, grey, or special grey

  • Range di temperatura di esercizio: +5°C~+45°C

  • Inline column

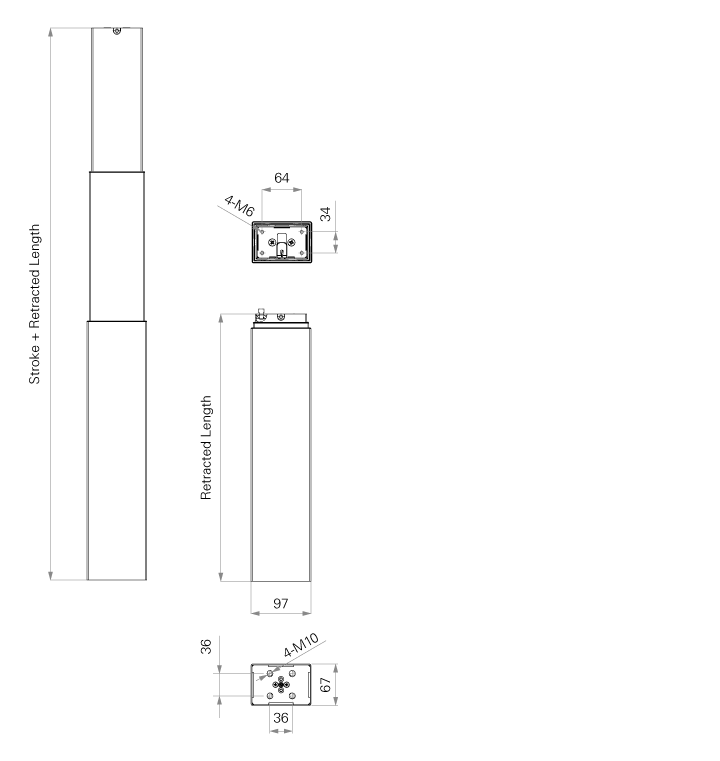

Dimensioni standard (mm)
