TA37
Series

Linear Actuators

Heavy-Load Linear Actuators For Healthcare  | TA37 - TiMOTION

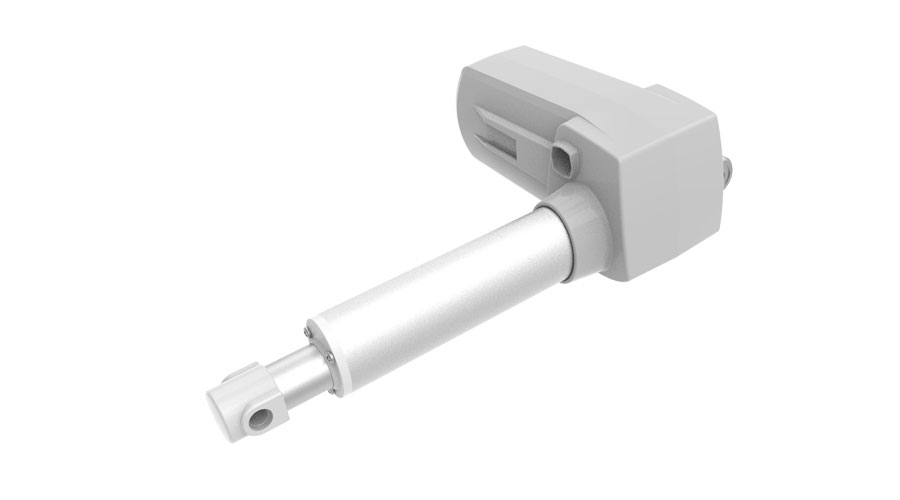

TA37 is one of our high quality medical actuators. TA37 is recommended for the demanding force medical applications. It remains stable speed even under heavy loading. The maximum stroke of TA37 is up to 1000mm and its IP rating can support up to IP66W. The suitable medical applications for TA37 are treatment tables or patient hoist systems.


General Features

  • Max. load: 12,000N (push)

  • Max. speed at max. load: 5.3mm/s

  • Max. speed at no load: 31.1mm/s

  • Retracted length: ≥ Stroke + 170mm

  • IP rating: IP66W

  • Certificate: IEC60601-1

  • Stroke: 25~1000mm

  • Output signals: Hall sensors

  • Options: Manual release (for patient hoist)

  • Voltage: 24/36V DC (thermal protector)

  • Color: Black or grey

  • Operational temperature range: +5°C~+45°C

  • Suitable for patient hoist application

Standard Dimension (mm)



Electric Linear Actuator Solution For Patient Lift Applications
