VN2
Series

Linear Actuators

Electric Actuator For Ventilation Applications | VN2 - TiMOTION

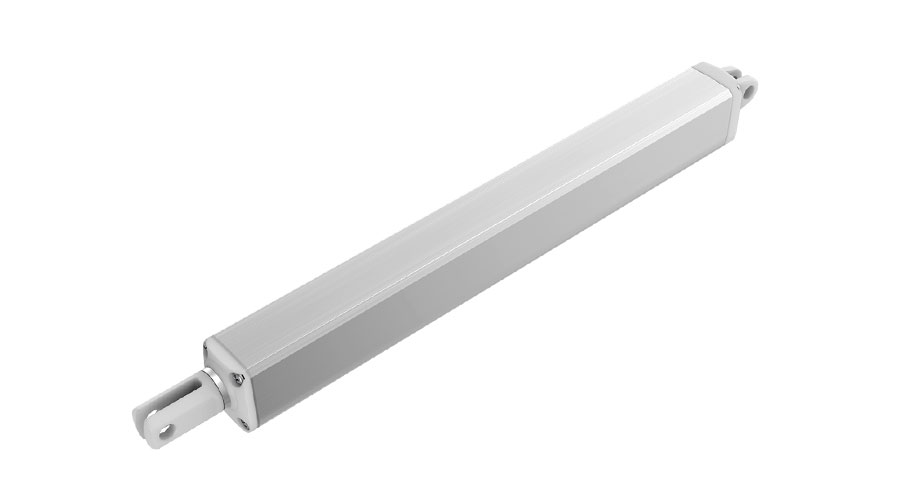

The VN2 series linear actuator is designed specifically for ventilation applications to help remove smoke, heat, and toxic gases from buildings quickly in the event of a fire. It is also designed to generate a minimum smoke layer in the lower parts of a room. The VN2 is made of high-quality aluminum, suitable for applications like fall-through protection systems and greenhouses. The VN2 is currently equipped with either a 12V or 24V DC motor.


General Features

  • Max. load: 500N (push/pull)

  • Max. speed at max. load: 8.35mm/s

  • Max. speed at no load: 10.8mm/s

  • Retracted length: ≥Stroke +189mm

  • IP rating: IP66

  • Stroke: 20~500mm

  • Output signals: Hall sensors

  • Voltage: 12/24V DC; 12/24V DC (thermal switch)

  • Operational temperature range: -25°C~ +65°C

  • Operational temperature range at full performance: +5°C~+45°C

Standard Dimension (mm)
