TA5P
Series

TiMOTION's TA5P is designed using a one-piece aluminum outer cover for increased strength and enhanced protection from contaminants. The TA5P utilizes a linear slide to move the load, instead of a standard extension tube. Industry certifications for the TA5P include EMC, and RoHS. It is also available with Hall sensors for position feedback and a special L-shaped mounting bracket.

General Features

• Max. load: 6,000N (push); 3,000N (pull)

• Max. speed at max. load: 4.1mm/s

• Max. speed at no load: 58mm/s

• Retracted length: ≥ 157mm

• Certificate: UL962, EN 61000-6-1, EN 61000-6-3

• Output signals: Hall sensors

• Options: L-shaped bracket

• Voltage: 12/24/36V DC

• Color: Black

• Specially designed for recliner

• One-piece design, stronger structure, cable-free

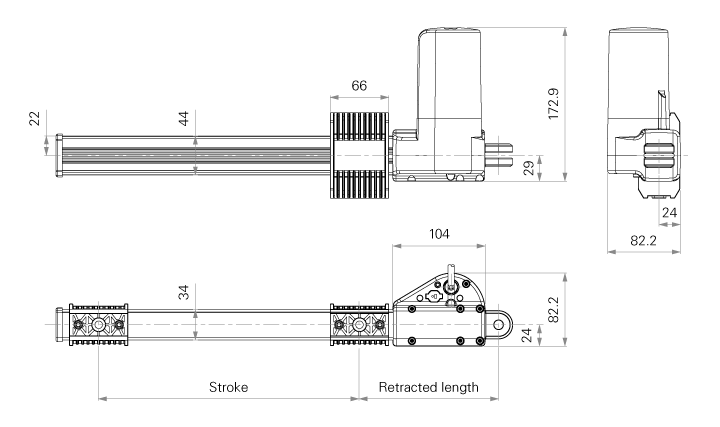

Standard Dimension (mm)
