TA2
Series

Linear Actuators

Compact Industrial Linear Actuators | TA2 - TiMOTION

TiMOTION's TA2 series linear actuator is compact, robust and capable of performing well in certain outdoor environments. This linear actuator is perfect for use in small spaces where force or capability cannot be sacrificed. Options include feedback sensors, signal sending limit switches and 90 degree clevis mounting.


General Features

  • Max. load: 1,000N (push/pull)

  • Max. speed at max. load: 7.6mm/s

  • Max. speed at no load: 67.5mm/s

  • Retracted length: ≥ Stroke + 105mm (without output signals)

  • IP rating: IP66M

  • Certificate: EMC

  • Stroke: 20~1000mm

  • Output signals: Mechanical pot., embedded reed switch, NPN Hall sensor, Adjustable Reed switch

  • Voltage: 12/24/36/48V DC; 12/24/36/48V DC (PTC)

  • Color: Silver

  • Operational temperature range: +5˚C~+45˚C (Load < 500N); -25˚C~+65˚C (Load ≧ 500N)

  • Operational temperature range at full performance: +5°C~+45°C

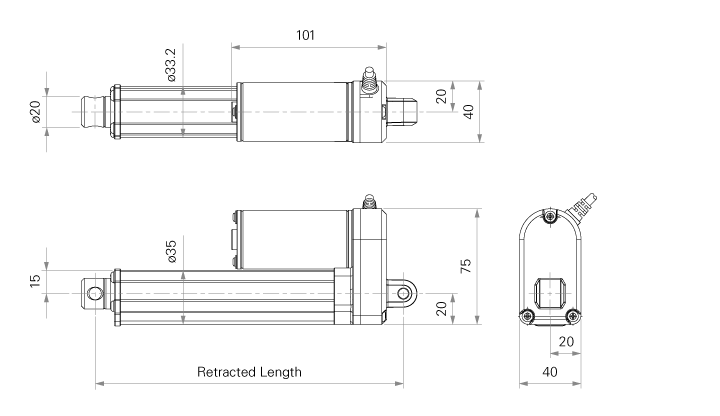

Dimension without Output Signals (mm)







Dimension with Output Signals (mm)
