Linear Actuators

TiMOTION’s TA9 linear actuator was designed as an economical and compact solution specifically for home furniture and ergonomic applications

TiMOTION’s TA9 is one of the smart furniture actuator options with compact dimension. This linear actuator is designed with a custom gear box, molded with a specially formulated plastic material which allows the TA9 to support load ratings up to 2500N. An EMC certification has been attained for this series, which is also available with optional IP54 or IP66 protection.

General Features

  • Max. load: 2,500N (push); 1,000N (pull)

  • Max. speed at max. load: 5.1mm/s

  • Max. speed at no load: 58.3mm/s

  • Retracted length: ≥ Stroke+140mm

  • IP rating: IP66

  • Certificate: IEC60601-1, ES60601-1, IEC60601-1-2, UL962, EMC

  • Stroke: 20 ~ 600mm

  • Option: Hall sensors

  • Voltage: 12/24V DC; 12/24V DC (PTC)

  • Color: Black or grey

  • Operational temperature range: +5°C~+45°C

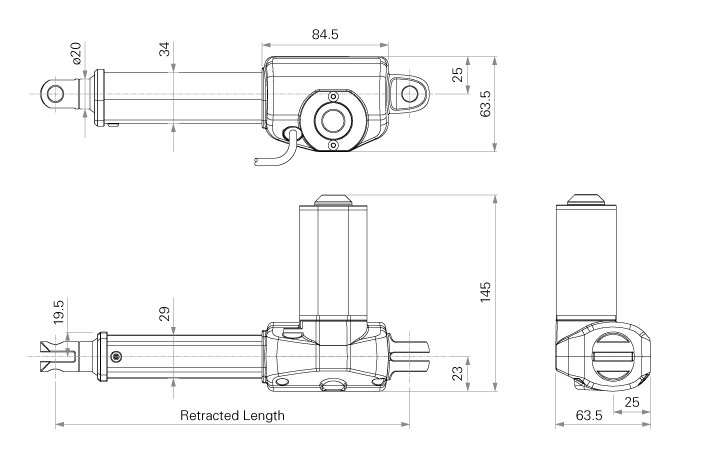

Standard Dimension (mm)
