TA6
Series

Linear Actuators

Quiet Electric Actuators For Seatings | TA6 - TiMOTION

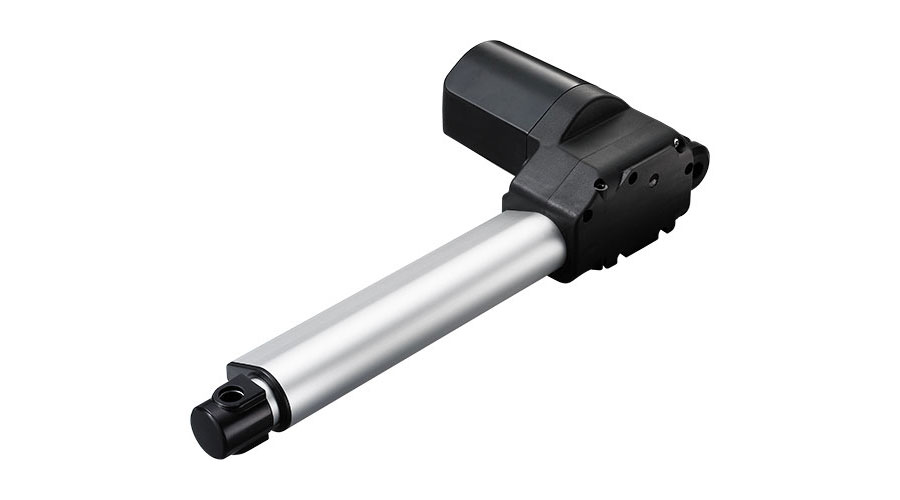

TiMOTION's TA6 series linear actuator is designed for lift applications like recliners, lifting chairs and movie theater seating. Its right angle design reduces noise and allows for fitment into most applications. Industry certifications for the TA6 linear actuator include EMC and RoHS. In addition, the TA6 is available with optional Hall sensors for position feedback. It can also be used where freewheeling push only functionality is desired.


General Features

  • Max. load: 6,000N (push); 4,000N (pull)

  • Max. speed at max. load: 5mm/s

  • Max. speed at no load: 43mm/s

  • Retracted length: ≥ Stroke + 163mm

  • Certificate: UL962, EMC

  • Stroke: 25~1000mm

  • Output signals: Hall sensors

  • Options: Freewheeling push only, safety nut

  • Voltage: 12/24/36V DC

  • Color: Black

  • Operational temperature range: +5°C~+45°C

Standard Dimension (mm)
