MA3
Series

TiMOTION's MA3 was specifically designed for heavy-duty applications and harsh working environments that require durability. Examples of applications suitable for the MA3: Agricultural equipment such as spreaders, harvesters, grain handlers, combines, and tractors. Commercial and industrial applications such as commercial lawn mowers, scrubbers and sweepers, and material handling equipment.

General Features

• Max. load: 16,000N (push/pull)

• Max. speed at max. load: 8.9mm/s

• Max. speed at no load: 172.5mm/s

• Retracted length: ≥ Stroke + 200mm

• IP rating: IP69K

• Certificate: UL73, EMC

• Stroke: 25~1000mm

• Output signals: Hall sensor(s), Pot., Reed switch on the outer tube

• Voltage: 12/24V DC; 12/24V DC (thermal switch)

• Operational temperature range: -40˚C~ +85˚C

• Operational temperature range at full performance: +5°C~+45°C

• Manual drive

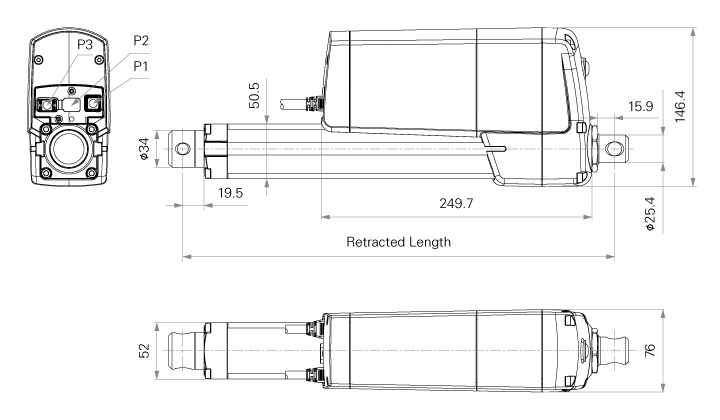

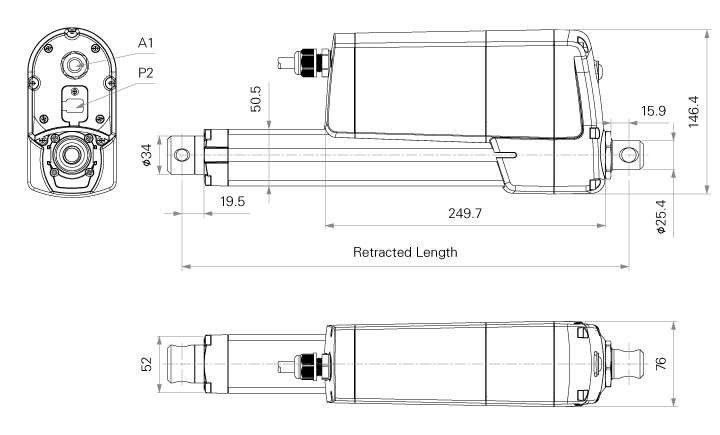

Standard Dimension (mm)
