TRK1 Series

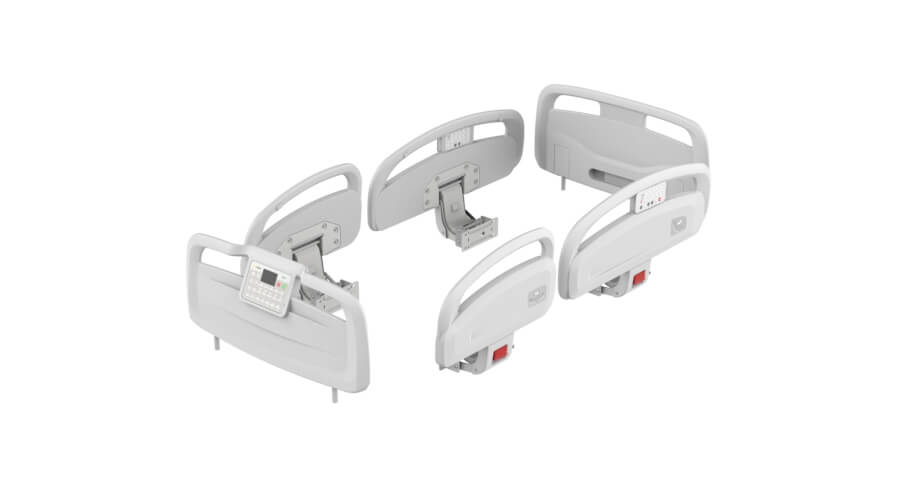

The TRK1 is a premium medical bed rail kit designed for both medical beds and home care beds. With a sleek design and a comfortable grip, it provides superior stability, durability, and effective fall prevention to enhance patient safety. The side rails seamlessly integrate with the TNP10, TiMOTION’s nursing control panel, supporting up to 17 function buttons on the outer side and 16 on the inner side. For added functionality, the footboard can be paired with either a 7-inch touchscreen color display or a 3.5-inch color display, along with a hand control offering up to 25 function buttons.

General Features

• Medical bed rail kit

• Color display available

• IP rating: Up to IP66W

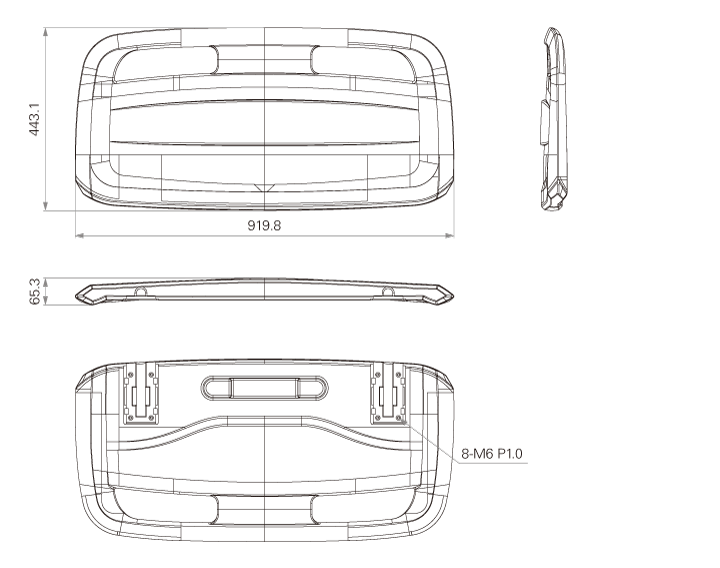

Standard Dimensions - Head Board(mm)

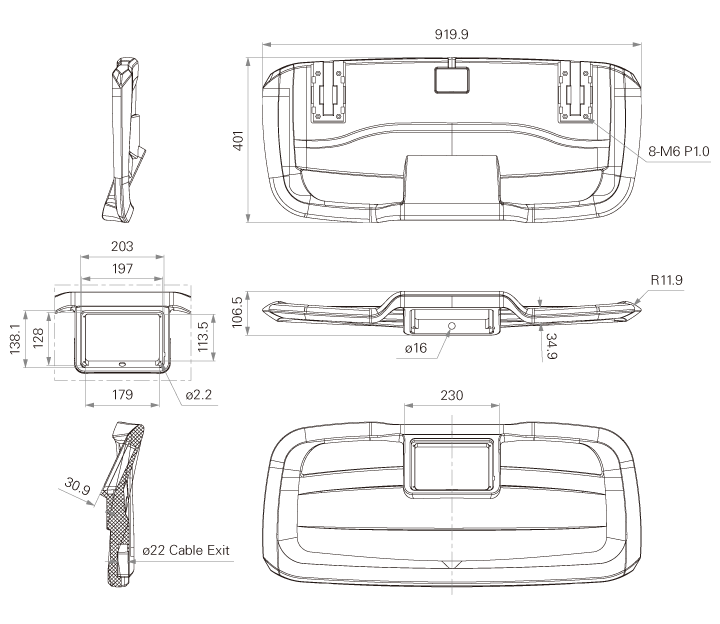

Standard Dimensions - Foot Board(mm)

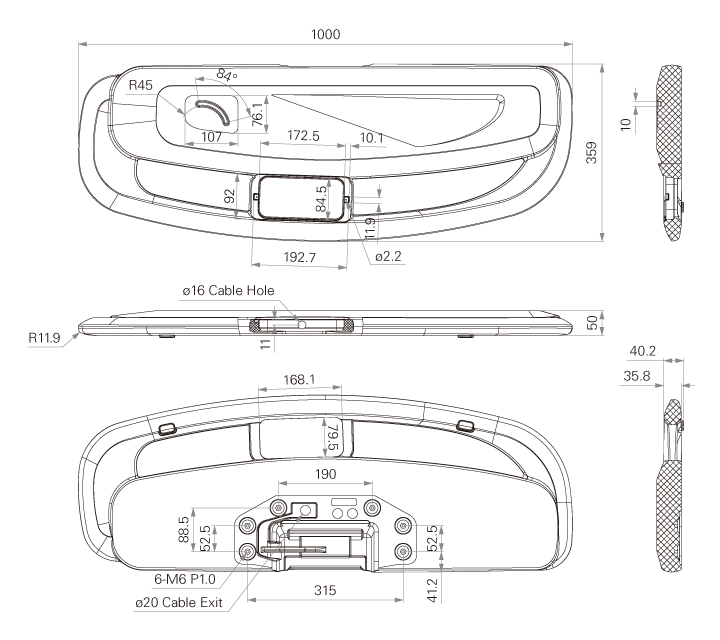

Standard Dimensions - Back Side Rail (Left)(mm)

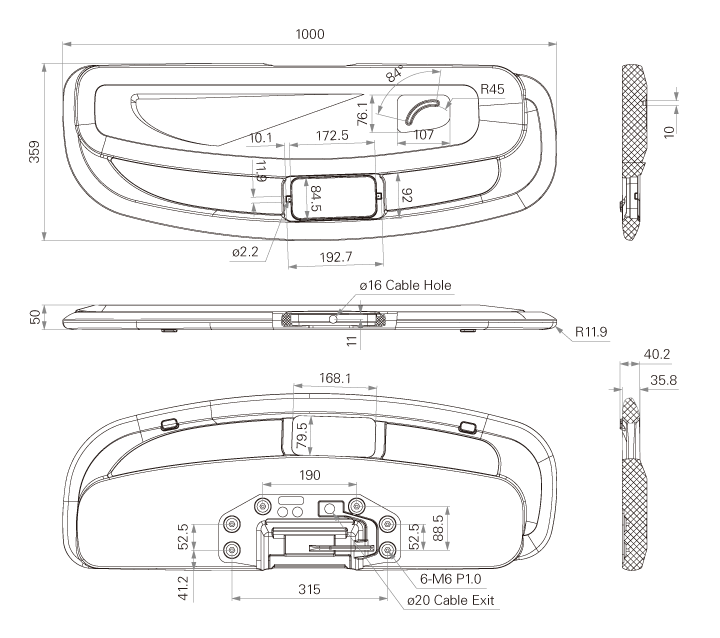

Standard Dimensions - Back Side Rail (Right)(mm)

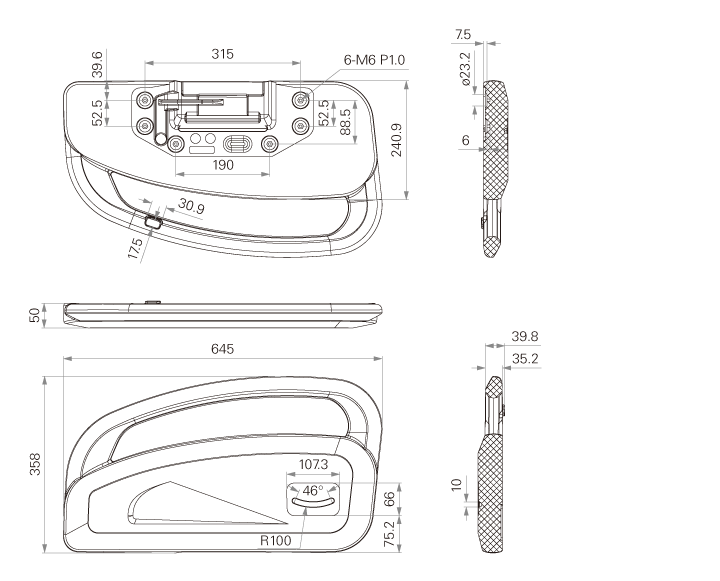

Standard Dimensions - Leg Side Rail (Left)(mm)

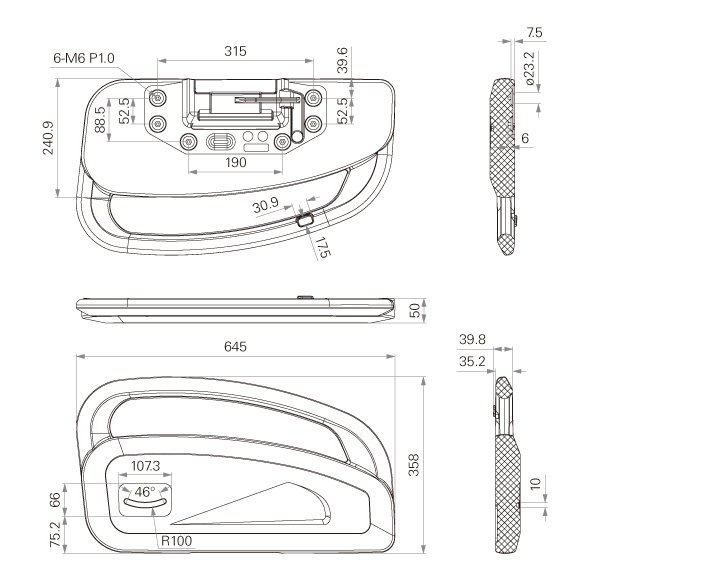

Standard Dimensions - Leg Side Rail (Right)(mm)
