120W AC To DC Actuator Power Supply With IP69K | TIP1 - TiMOTION

TiMOTION TIP series-TIP1 is a 120W AC to DC power supply with a constant output voltage design. The TIP1 can work under the input voltage between 90 to 305V AC and provides the 30V DC output voltage.



Its conversion efficiency rate is up to 93.5%. Therefore, it will not generate too much heat and can work in ventilated conditions. With a fanless design, TIP1 can also reduce noise. Its operational temperature is around -40˚C to +85˚C. TIP1 has a metal appearance and provides IP67/IP69K protection suitable for either outdoor or indoor applications.


Caracterísiticas generales

  • Tipo de transformador: SMPS

  • Tensión de entrada: 90~ 305V AC

  • Voltaje máximo: 54V DC, 2.3A

  • Tipo de enchufe: EU, USA, AUS, UK, JPN

  • Color: Metal appearance with black cord

  • Clase de protección IP: IP67/IP69K

  • Certificaciones: BIS, UL8750, TUV, PSE, CCC, ENEC, CB, EMC, CE, UK Declaration

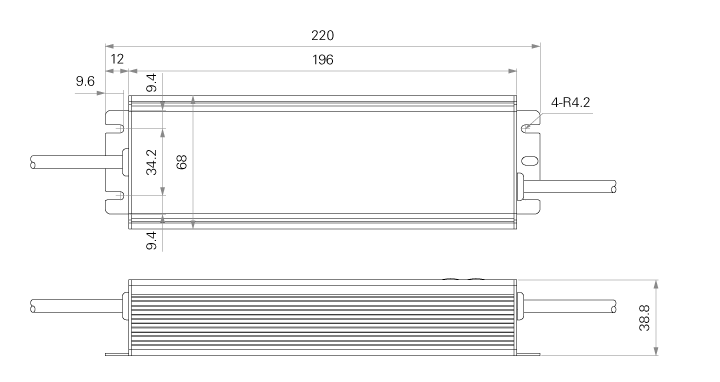

Dimensiones estándar (mm)
