TIP2 Series

TiMOTION TIP series-TIP2 is a 320W AC to DC power supply with a constant output voltage design. The TIP2 can work under the input voltage between 90 to 305V AC and provides the 24V DC output voltage.

Its conversion efficiency rate is up to 94%. Therefore, it will not generate too much heat and can work in ventilated conditions. With a fanless design, TIP2 can also reduce noise. Its operational temperature is around -40˚C to +85˚C. TIP1 has a metal appearance and provides IP67 protection suitable for either outdoor or indoor applications.

General Features

• Transformer type: SMPS

• Input voltage: 90~ 305V AC

• Max. output: 24V DC, 13.34A

• Plug support: EU, USA, AUS, UK, JPN

• IP rating: IP67

• Certificate: UL, RRA, TUV, PSE, CCC, CB, EMC, CE and UKCA Declaration

• Operational temperature range: -40˚C~+85˚C

• *For installation details, please visit: https://www.meanwell.com/productManual.aspx

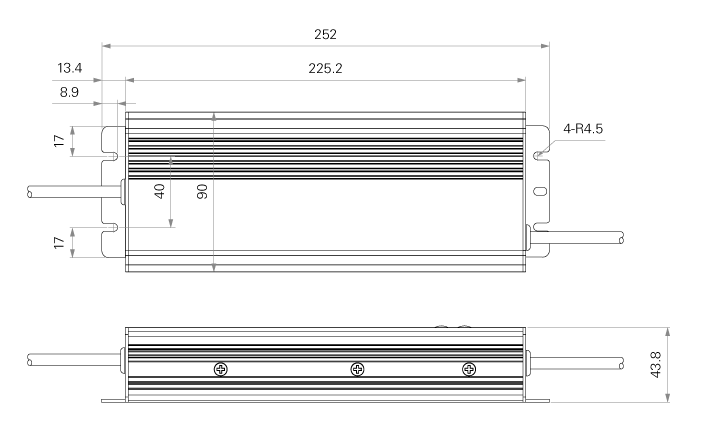

Standard Dimension (mm)
