3-Stage Electric Desk Lifting Columns | TL9 - TiMOTION

As colunas da série TL9 da TiMOTION são concebidas de modo específico para estações de trabalho e mesas de trabalho ergonômicas. Combinadas com as caixas de controle da série TC e com os controles remotos das séries TH/TDH, estas colunas permitem o ajuste das superfícies de trabalho de maneira fluida, silenciosa e sincronizada. Todas as caixas de comando da série TC da gama ergonômica têm um consumo inferior a 0,1 W em espera, a fim de economizar energia. Nossa grande gama de colunas oferece aos clientes todas as soluções de que eles precisam para responder às suas exigências dentro do ambiente profissional. A série TL9 é equipada com um tubo telescópico de três níveis.

Recursos Gerais

  • Carga máxima: 800 N (impulso)

  • Velocidade máxima com carga máxima: 33mm/s

  • Velocidade máxima sem carga: 58mm/s

  • Comprimento mínimo de encolhimento: Padrão: 590 / 560(M) / 520(S)mm
    Com patins: 610 / 580(M) / 540(S)mm

  • Dimensão do tubo externo: Ø70mm redondo

  • Estágio: 3 estágios

  • Curso: 650 / 660 (M, S) mm

  • Saídas de sinal: Sensores Hall

  • Tensão máxima do motor: 24V DC

  • Com carcaça de motor

  • The TL9 can only be used in pairs; single column usage is not recommended

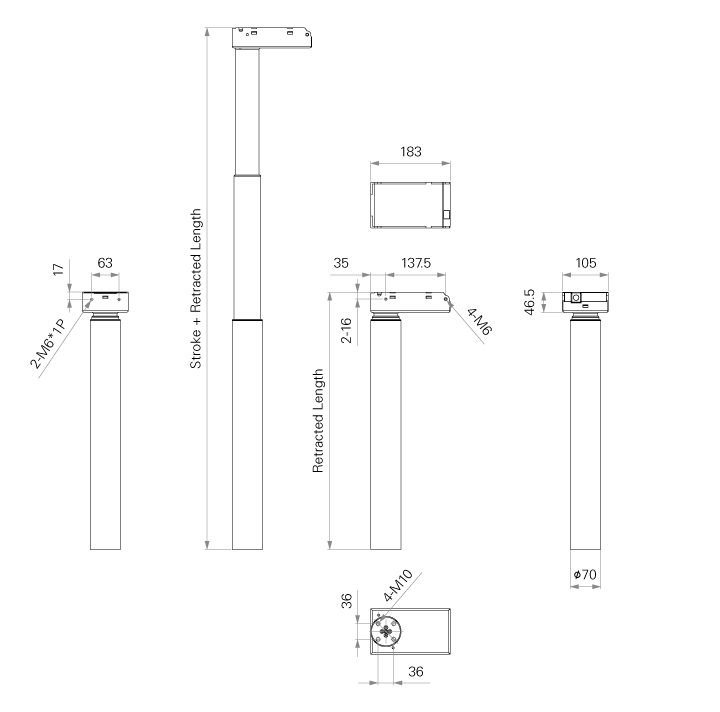

Standard Dimension (mm)


    An electric lifting column consists of an electric actuator integrated with a telescopic tube. The actuator provides the push and pull, while the telescopic tube provides the guidance. TiMOTION lifting column series offers reliable vertical movement and allows height adjustment of many industrial, medical, workplace and comfort equipment.


    TiMOTION revolutionizes ergonomic solutions with an extensive range of lifting columns, catering to diverse needs. Our lifting column systems are available with columns that include:

    • Motor housing columns
    • Inline columns: Without any protruding motor housing, it is ideally suited for various design-oriented applications that requires a clean, elegant appearance.

    For desk applications, TiMOTION offers a specialized series of lifting columns designed to meet specific requirements.

    • Basic series (TL-S) is ideal for standard applications, providing a reliable and efficient lifting solution.
    • Light-load series (TL-K) is tailored for situations where a lighter lifting capacity is needed, offering precision and ease of use.
    • Heavy-load series (TL-H) is engineered to handle robust lifting tasks, ensuring durability and stability.

    Whether you seek a streamlined design or a lifting column with varying load capacities, TiMOTION's diverse offerings empower you to customize your lifting applications with cutting-edge ergonomic solutions.

    Electric lifting columns allow the automated adjustment of equipment from any sector, to adapt them to users and their specific needs of size, age, and mobility. Equipment utilizing electric columns bring users comfort and safety while optimizing time and efficiency. That's why they are found in most everyday equipment, regardless of the application:

    • Healthcare: hospital beds, medical chairs, hospital tables and carts, ophthalmological equipment, examination equipment ...
    • Industry: heavy-load lifting applications
    • Workspace: sit-stand desks, workstations, laboratory benches, control stations, display units...
    • Home: kitchen equipment, TV lifts, cabinets, desks...

    The main features of TiMOTION lifting columns include quiet and precise height adjustment and a sturdy design. These columns offer easy installation, high compatibility, and a diverse range of force, speed, stroke length, output signal options, IP rating, and so on, making them versatile solutions for desks, ergonomic furniture, and healthcare equipment applications.

    TiMOTION lifting columns come in diverse profiles, such as 2-stage or 3-stage designs, and various shapes: round, rectangular, or square. These profiles offer flexibility in adapting to specific applications, providing adjustable height solutions for desks, ergonomic furniture, and healthcare equipment applications.

    It is important to select the appropriate lifting columns that can meet the requirements of the application. Every application has a list of unavoidable conditions. To choose the right lifting column, you must first consider your application's constraints and technical priorities:

    • Required height adjustment range
    • Load capacity and speed
    • Available space for installation
    • Profile that complements your product's design, whether it's a 2-stage or 3-stage column, round, rectangular, or square.
    • Other customization needs: IP rating, signal options, color options...

    With a vertically integrated business model, TiMOTION offers highly customized solutions to meet the unique requirements of various applications, ensuring that the integration of electric linear actuation is seamless and efficient.

    TiMOTION works exclusively with Original Equipment Manufacturers (OEMs). Therefore, we do not stock, distribute, or sell any single product. For any questions, replacement, or purchase of an individual component, please contact your specific equipment manufacturer. Components are often covered by their warranty and may be available in stock for single unit distribution.
