480W AC To DC Actuator Power Supply With IP69K | TIP3 - TiMOTION

TiMOTION TIP series-TIP3 is a 480W AC to DC power supply with a constant output voltage design. The TIP3can work under the input voltage between 90 to 305V AC and provides the 30V DC output voltage. Its conversion efficiency rate is up to 95.5%. Therefore, it will not generate too much heat and can work in ventilated conditions. With a fanless design, TIP3 can also reduce noise. Its operational temperature is around -40˚C to +85˚C. TIP3 has a metal appearance and provides IP67/IP69K protection suitable for either outdoor or indoor applications.


主な特長

  • 変圧器タイプ:SMPS

  • 入力電圧:90~ 305V AC

  • 変圧器内蔵最大出力:54V DC, 8.9A

  • プラグサポート:EU, USA, AUS, UK, JPN

  • 色:Metal appearance with black cord

  • IP等級:IP67/IP69K

  • 認証:UL, RRA, TUV, PSE, CCC, CB, EMC, CE and UK Declaration

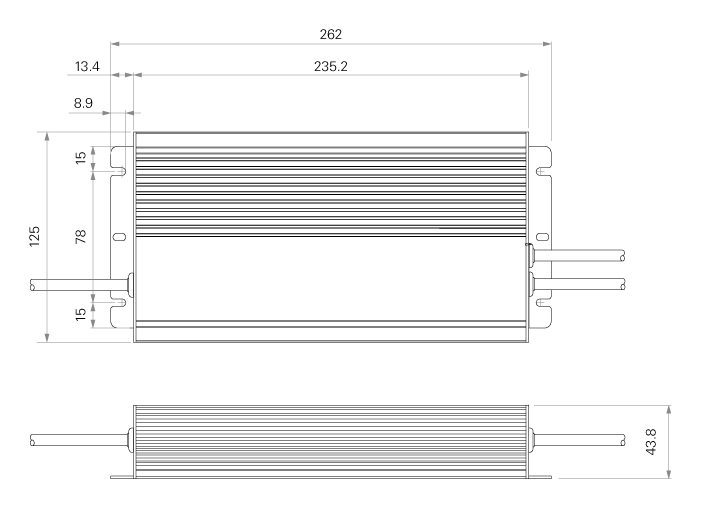

標準寸法 (mm)
