TiMOTION Produtos Atuadores lineares TA16 Series

TA16
Series

Atuadores lineares

Adicionar a favoritosAdicionado

Consulte

The TA16 is specifically designed to be low-noise

Care Motion Comfort Motion Industrial Motion

Baixar

Data Sheet 3D

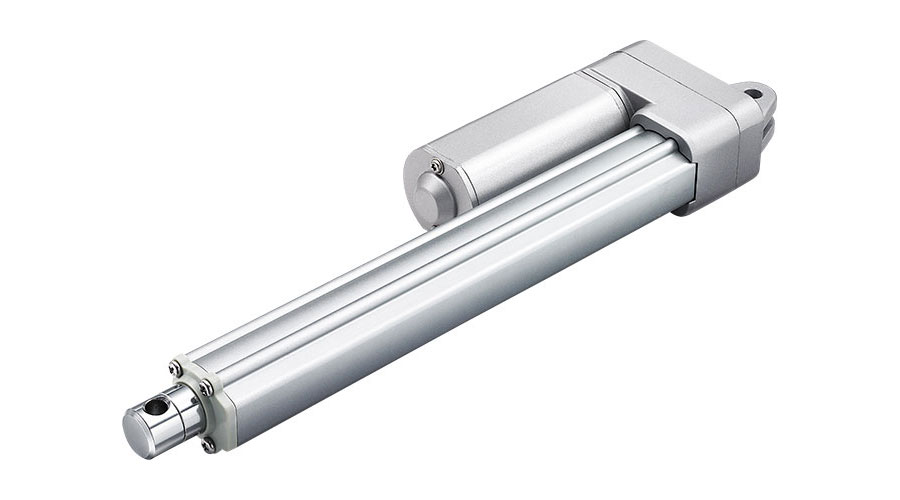

TiMOTION’s TA16 series linear actuator is similar to the TA2 linear actuator, but is specifically designed for low-noise medical applications where a compact linear actuator is needed. It is available with optional IP66 protection and Hall sensors for position feedback. Certificates for the TA16 include IEC60601-1, ES60601-1, IEC60601-1-2, UL962, and EMC.

Recursos gerais

Voltage of motor: 12, 24, 36, 48V DC
Maximum load: 3,500N in push and pull
Maximum speed at full load: 13.5mm/s (with 1,500N in a push or pull condition)
Standard stroke: 20~600mm
Minimum installation dimension: ≥ Stroke+112mm
Color: Silver
IP rating: Up to IP66
Option: POT, Hall sensor(s)
Certificate: IEC60601-1, ES60601-1, IEC60601-1-2, UL962, EMC
Operational temperature range: +5°C~+45°C
With very low noise, small size for easy installation
Suitable for patient hoist application

Standard Dimension (mm)
