TA29
Series

Atuadores lineares

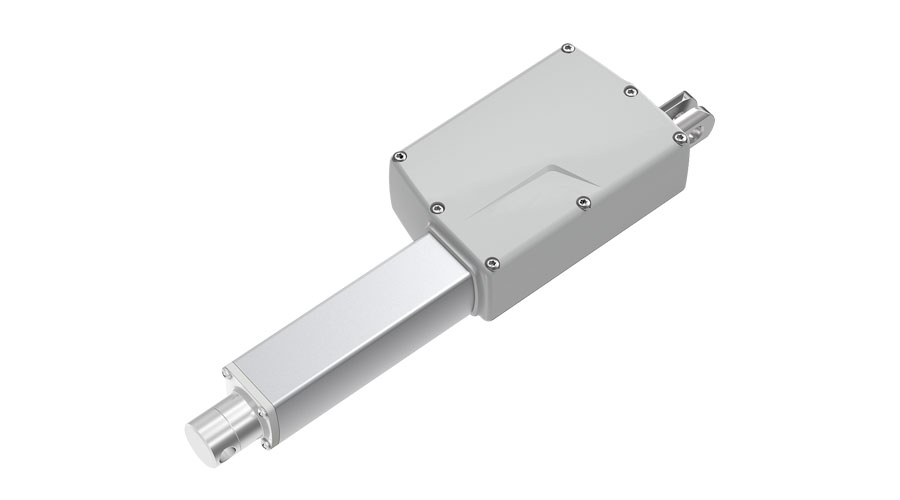

TiMOTION’s TA29 is one of our new generation medical actuators, which can lift up to 4500N, yet has compact installation dimension. In addition to this, its IP rating is up to IP66W. The TA29 is highly recommended for various medical applications that require a short retracted length, yet need to support a large force, such as the leg adjustment or sling angle actuator on the patient hoist system.

Recursos gerais

  • Voltage of motor: 12, 24V DC; 12, 24V DC (PTC)
  • Maximum load: 4,500N in push
  • Maximum load: 4,000N in pull
  • Maximum speed at full load: 17.7mm/s (with 1500N in a push/pull condition)
  • Minimum installation dimension: ≥ 178mm
  • Color: Black or grey
  • IP rating: Up to IP66W
  • Certificate: IEC 60601-1-2
  • Operational temperature range: +5°C~+45°C
  • Suitable for patient hoist application (leg adjustment or sling angle)
  • Suitable for patient hoist application

Standard Dimension (mm)
