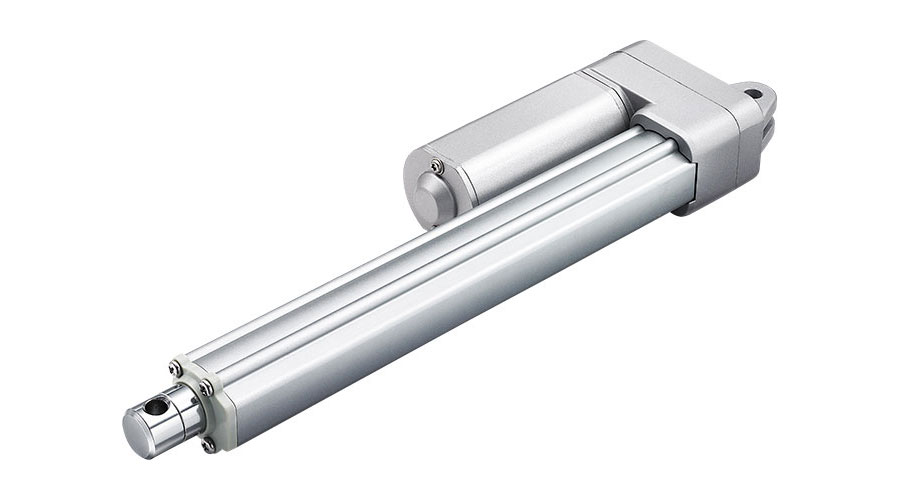

TA16 Series

Linear Actuators

The TA16 is specifically designed to be low-noise

TiMOTION’s TA16 series linear actuator is similar to the TA2 linear actuator, but is specifically designed for low-noise medical applications where a compact linear actuator is needed. It is available with optional IP66 protection and Hall sensors for position feedback. Certificates for the TA16 include EN60601-1 and ES60601-1.

General Features

  • Voltage of motor: 12V DC or 24V DC
  • Maximum load: 3,500N in push
  • Maximum load: 2,500N in pull
  • Maximum speed at full load: 13.5mm/s (with 1,500N in a push or pull condition)
  • Standard stroke: 20~1000mm
  • Minimum installation dimension: Stroke+112mm (without output signals)
  • Color: Silver
  • IP rating: Up to IP66
  • Option: Hall sensor(s)
  • Certificate: EN60601-1
  • Operational temperature range: +5°C~+45°C
  • With very low noise, small size for easy installation

Standard Dimension (mm)
