TA15 Series

Linear Actuators

The TA15 is safe, reliable, and effortless to operate

Document Downloads

Data Sheet 3D

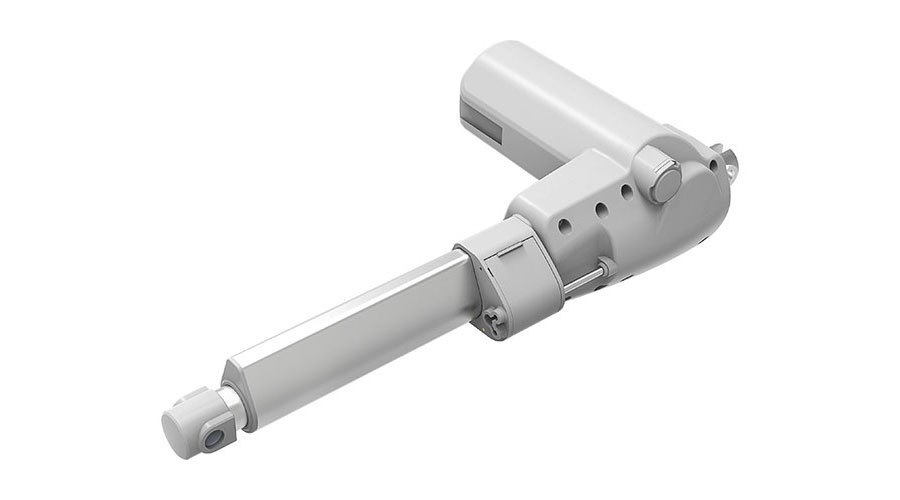

TiMOTION’s TA15 series linear actuator was specifically designed for bariatric bed applications. These beds require a robust, long life solution that incorporates safety, reliability and effortless operation. A significant feature of the TA15 linear actuator is the manual release function that allows for lowering of the patient in the event of an emergency or electrical power outage.

General Features

  • Voltage of motor: 24V DC or 36V DC
  • Maximum load: 10,000N in push
  • Maximum load: 5,500N in pull
  • Maximum speed at full load: 32.2mm/s (with 1,500N in a push condition)
  • Minimum installation dimension: Stroke+210mm
  • Color: Black or grey
  • IP rating: Up to IP66W
  • Operational temperature range: +5°C~+45°C

Standard Dimension (mm)
