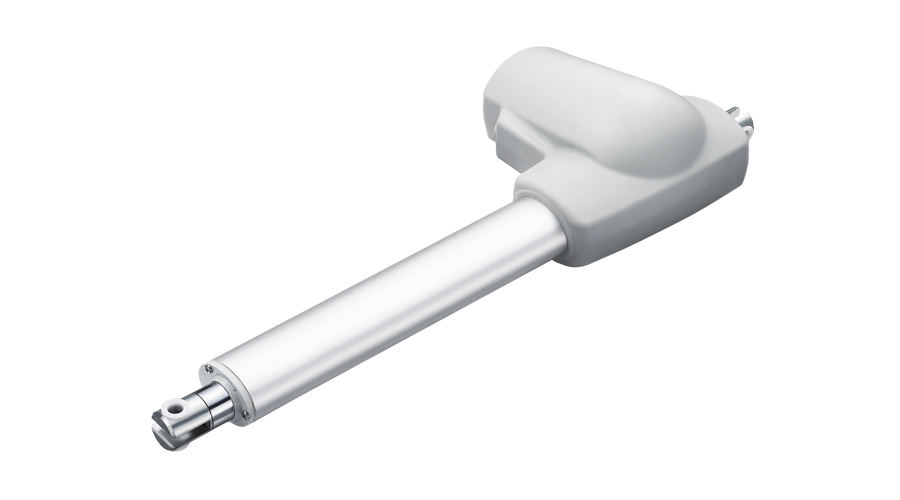

TA12 Series

Linear Actuators

The TA12 is focused on safety, reliability, and efortless operation

TiMOTION’s TA12 series linear actuator is designed primarily for high-load patient lifts and bariatric beds. These sensitive applications require a linear actuator whose design is focused on safety, reliability and effortless operation. A significant feature of the TA12 is the manual release function that allows for lowering of the patient in the event of an emergency or electrical power outage. The TA12 linear actuator has obtained the EN60601-1 certification and is available with an optional IP54 or 66 rating.

General Features

  • Voltage of motor: 12V DC, or 24V DC
  • Maximum load: 12,000N in push
  • Maximum load: 6,000N in pull
  • Maximum speed at full load: 32.3mm/s (with 1,500N in a push or pull condition)
  • Minimum installation dimension: Stroke+210mm
  • Color: Black or grey
  • IP rating: Up to IP66W
  • Certificate: RoHS and EN60601-1 compliant
  • Operational temperature range: +5°C~+45°C
  • Option: Safety nut, Hall/Reed/POT sensor(s), manual release

Standard Dimension (mm)
