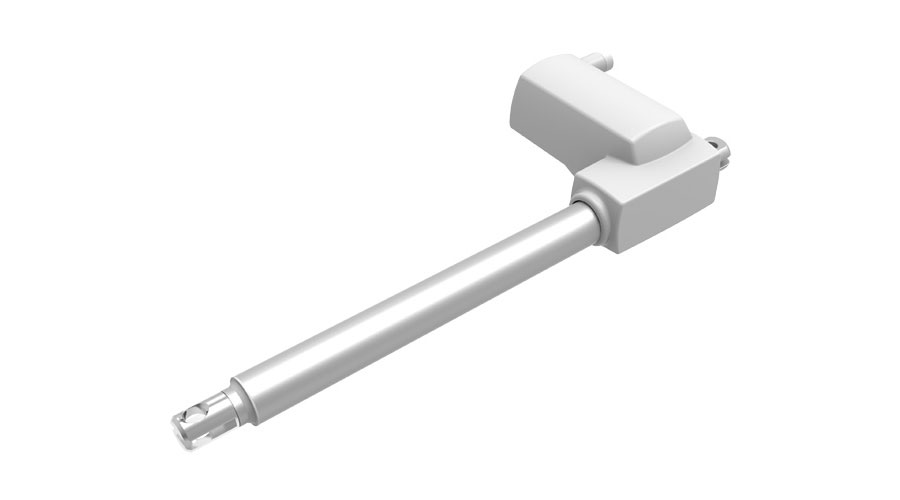

TA11 Series

Linear Actuators

The TA11 is popular for use in bathroom chair applications

Document Downloads

Data Sheet 3D

TiMOTION’s TA11 series linear actuator is primarily used in the medical market. This actuator series is suitable for bathroom chair applications. Its compact design supports load ratings up to 1,500N.

General Features

  • Voltage of motor: 12V DC or 24V DC
  • Maximum load: 1,500N in push
  • Maximum speed at full load: 10.5mm/s (with 1,500N in a push condition)
  • Minimum installation dimension: Stroke+155mm
  • Color: Grey
  • IP rating: Up to IP66
  • Option: Hall sensor(s)

Standard Dimension (mm)
