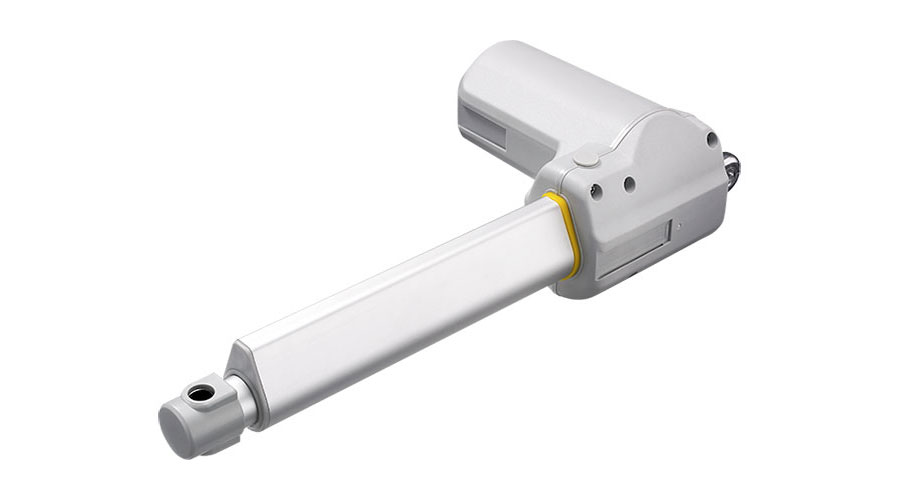

TA1 Series

Linear Actuators

The TA1 is TiMOTION's flagship model actuator

Document Downloads

Data Sheet 3D

The TA1 series linear actuator is TiMOTION’s flagship model suited for healthcare, furniture, ergonomic and industrial applications. Industry certifications for the TA1 include EN60601-1, and RoHS. In addition, the TA1 linear actuator is available with an optional IP54 or 66 rating. Other options include a manual or quick release system and Hall or Reed feedback sensors.

General Features

  • Voltage of motor: 12V DC, 24V DC, or 36V DC
  • Maximum load: 10,000N in push
  • Maximum load: 4,000N in pull
  • Maximum speed at full load: 23.4mm/s (with 1,000N in a push or pull condition)
  • Minimum installation dimension: Stroke+163mm
  • Color: Black or grey
  • IP rating: Up to IP66
  • Certificate: EN60601-1and RoHS compliant
  • Operational temperature range: +5°C~+45°C
  • Options: Safety nut, quick release, Hall/Reed sensor(s)

Standard Dimension (mm)
