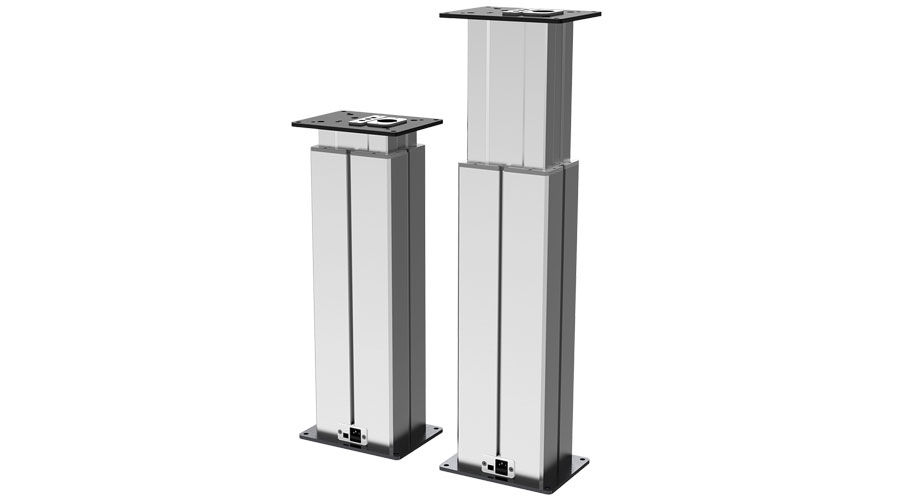

TiMOTION’s TL18AC electric lifting column is designed for industrial and medical applications such as height adjustable workstations, screen and lifting tables. The TL18AC features an extruded aluminum rectangular appearance. It is equipped with AC plug to connect the computers, TV or other device directly.

Caratteristiche Generali

• Maximum load & self- locking force: 4,500N in push
• Maximum dynamic bending moment: 250Nm
• Maximum static bending moment: 500Nm
• Maximum speed at full load: 28mm/s (with 500N in a push condition)
• Minimum installation dimension: Stroke+183mm
• Stroke: 200~700mm
• Operational temperature range: +5°C~+45°C
• Options: AC cable exit from top end, top side; Ethernet socket
