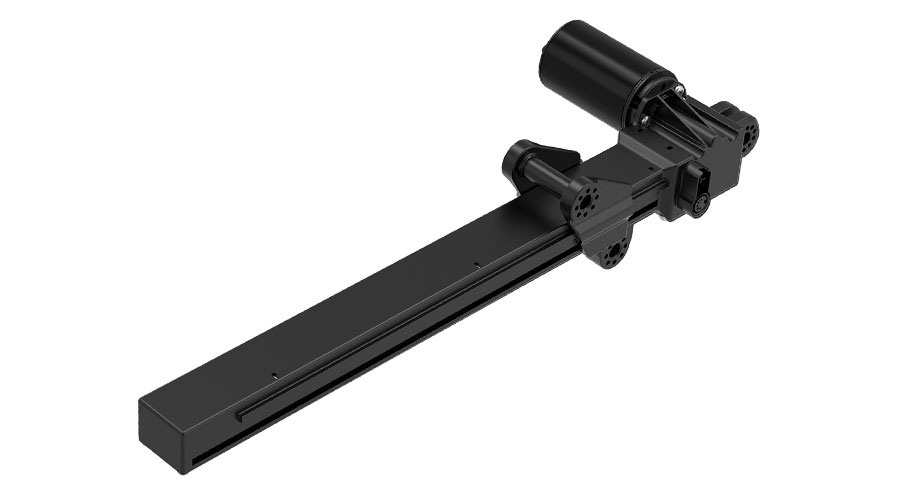

TiMOTION’s TA27 series linear actuator is manufactured with a specially formulated plastic material for the upper and lower housing. The patented TA27 linear actuator is designed to work with zero-wall seating frames and is the perfect choice for recliner movement. The TA27 series is designed without a control box connection, but can be directly connected with a hand control, which is a more economic- effective solution.
General Features
Voltage of motor: 24V DC
Maximum load: 750N in push / pull
Maximum speed at full load: 32mm/s (with 750N in a push condition)
Minimum installation dimension: 120 or 175mm (upon which fixation type one chooses from)
Color: Black
Certificate: UL962, EMC
Operational temperature range: +5°C~+45°C
Standard Dimension (mm)
Type 1 (Nut 31905-167)
Type 2 (Nut 31905-168)
