Linear Actuators

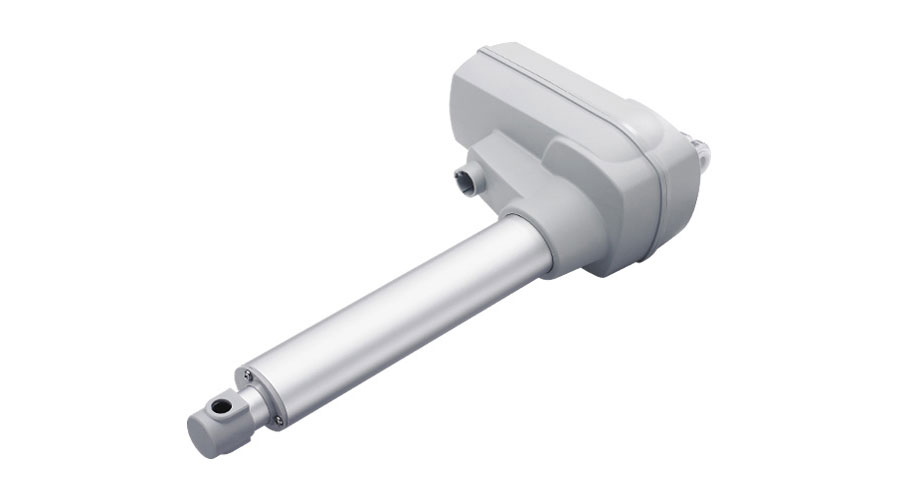

TiMOTION TA24 electric linear actuator includes a manual release function in event of emergency

The TA24 series linear actuator is suited for healthcare and industrial applications. The certifications for the TA24 include IEC60601-1 and ES60601-1. In addition, the TA24 linear actuator is available with an optional up to IP66W rating. Other options include Hall or POT feedback sensors.

General Features

  • Voltage of motor: 24V DC, 36V DC or 24V DC (PTC)

  • Maximum load: 10,000N in push

  • Maximum load: 6,000N in pull

  • Maximum speed at full load: 8mm/s (with 6,000N in a push or pull condition)

  • Stroke: ≥ 25~900mm

  • Minimum installation dimension: ≥ Stroke+190mm

  • Color: Black or grey

  • IP rating: Up to IP66W

  • Certificate: IEC60601-1, ES60601-1, IEC60601-1-2

  • Operational temperature range: +5°C~+45°C

  • Options: Safety nut, POT, Hall sensors

Standard Dimension (mm)
