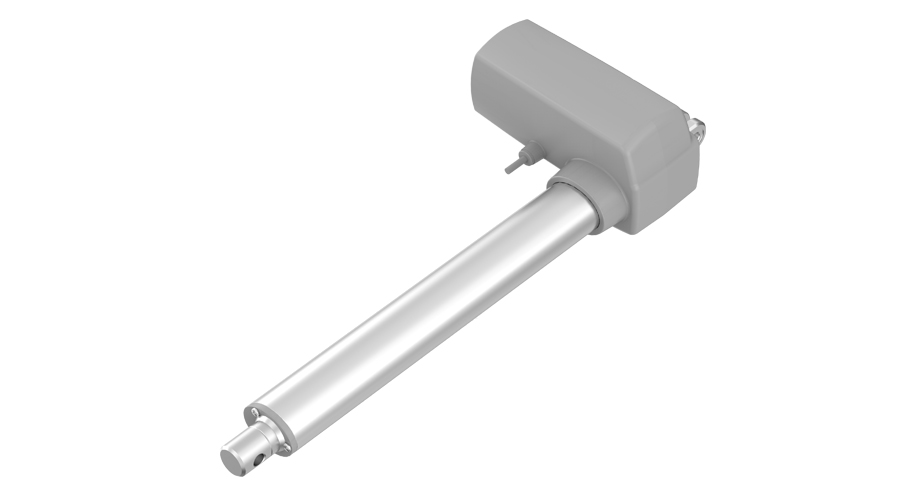

TA36 Series

Linear Actuators

Document Downloads

Data Sheet 3D

TA36 is a specially design motor for surgery table applications. It aims for the tilt or Trendelenburg adjustment. TA36 is also suitable for high-load patient lifts system.

General Features

  • Voltage of motor: 12V DC, 24V DC, 36V DC or 24V DC (PTC)
  • Maximum load: 10,000N in push
  • Maximum load: 6,000N in pull
  • Maximum speed at full load: 8mm/s (with 6,000N in a push or pull condition)
  • Stroke: 25~1000 mm
  • Minimum installation dimension: Stroke+170mm
  • Color: black or grey
  • IP Rating: up to IP66W
  • Operational temperature range: +5°C~+45°C
  • Options: Hall sensor(s)

Standard Dimension (mm)
